Product Details
＋

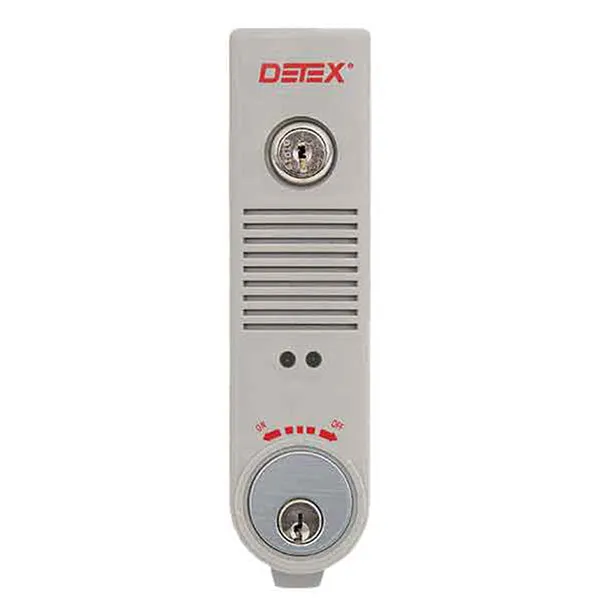

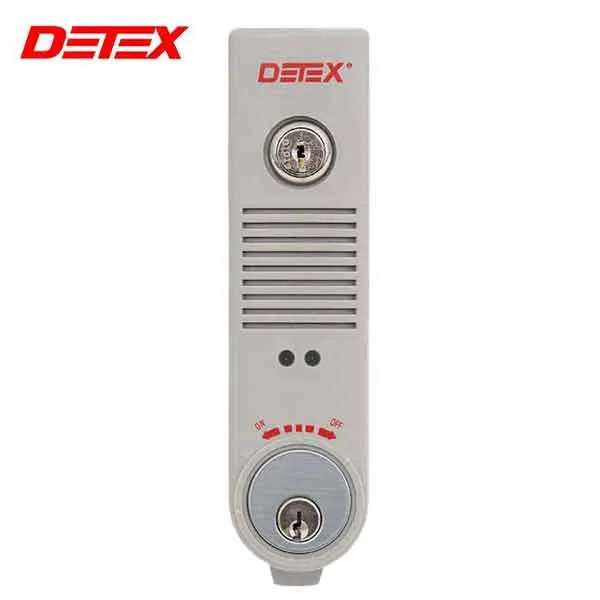

The EAX-500SK1 is designed for applications that require a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The redesigned shape and smaller size of the EAX-500 make it the choice for quick and easy installations on emergency exits and restricted doors.
1-1/8” Mortise Cylinder required with standard Yale cam to turn on alarm or off, not included.
Features
- Key Stop (Key removed only when armed)
- Includes 1 white MS-1039S magnetic switch
- Mortise cylinder key-switch arming
- Manual arming, disarming and rearming
- LED visual arming indicators
- Audible arming indicators
- Extended bypass allows alarm to remain bypassed when door is open and automatically rearm upon door closing
- Field selectable 2-minute auto rearm
- Field selectable status indicators
- Includes a red "Emergency Exit - Alarm will Sound" stick-on decal for the door
Specifications
| Style | Exit Alarm |
| Alarm | 100dB Piezo Alarm |
| Battery | 9 VDC |
| Mounting | Surface Door Mount |
| Stile | Minimum 2" Narrow |
| Finish | Gray |
| Mechanical Option | Key Stop, (1) MS-1039S Magnetic Switch |
