Product Details
＋

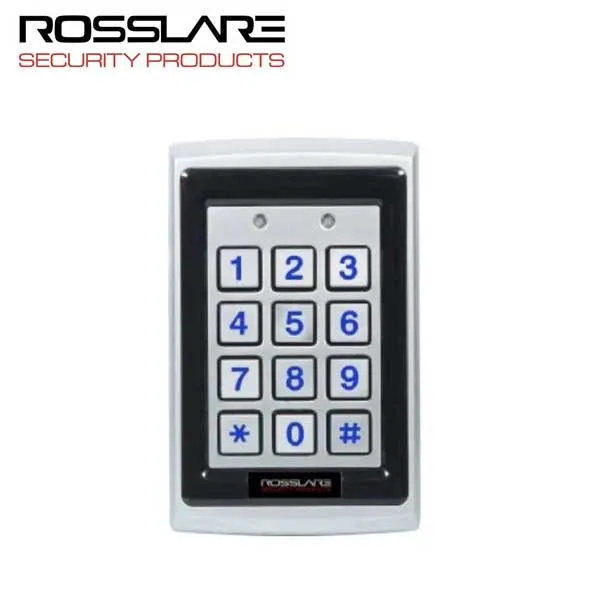

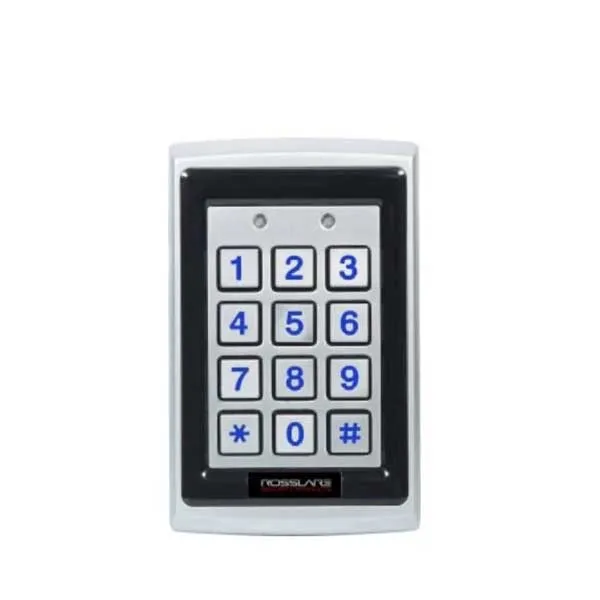

The ROS-AYC-Q6355 is a multi-credential technology contactless smart card reader with keypad for use in access control system solutions and includes Rosslare’s convertible technology.
Features:
- Selectable Wiegand output formats using the CS-HCT Hardware Configuration Tool for the DR-6255 application
- Eight keypad transmission formats are available and can be locally selected via keypad programming
- Mounting options include US gangbox and UK/Asia gangbox.
- Features Rosslare’s convertible technology
- NFC Android Smartphone is supported with the Android App for Host Card Emulation (HCE)
| Operating Voltage Range |
8–16 VDC |
| Input Current | 120 mA |
| Input Current Max | 160 mA |
| Read Range | 5 cm (2.5 in.) |
| Buzzer Control |
Dry Contact N.O. |
| Operating Temperature | -35°C to 66°C (-31°F to 150°F) |
| Dimensions | 120 x 76 x 22 mm (4.72 x 3 x 0.96 in.) |
