Product Details
＋

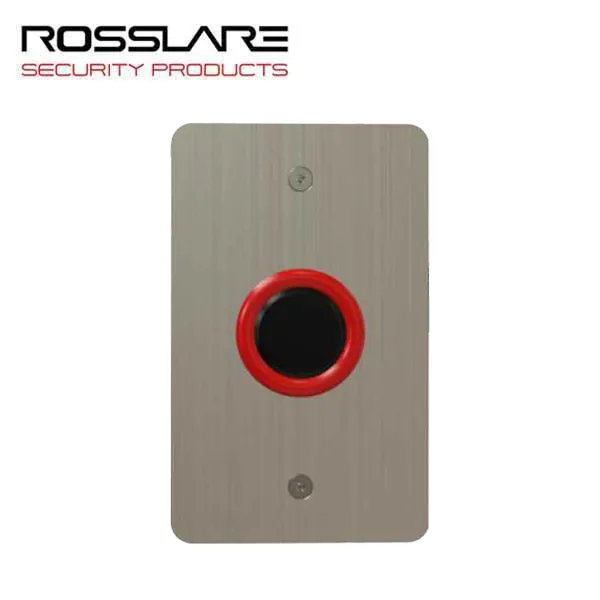

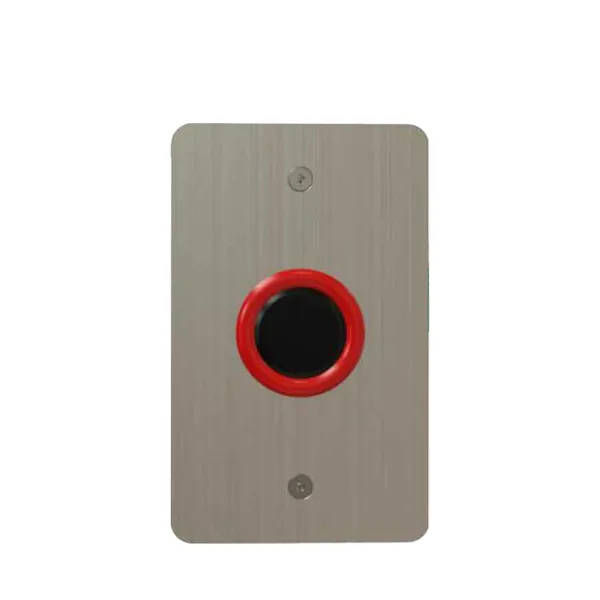

The EX-H22N00 is a passive infrared motion sensor (no touch switch). infrared motion sensors (no touch switch). The new access control switches are designed as antivandal and are suitable for installation in harsh environments and demanding applications. The switches have a red/green LED ring to display the switch status.
The switches are designed as Request-to-Exit (REX) buttons for access control systems, direct activate electric strike, or magnet locks.
Features:
- Advanced passive infrared motion sensor switch
- New weatherproof design – water and dust proof
- Circuit assembly encapsulation
- No moving parts
- Mounting Method Single Gang: Mounts directly to a US (EX-H22N) and UK (EX-M22N) gang switchbox
Specifications:
| Type |
Piezo |
| Sensor / Switch Type |
Motion |
| Operating Voltage |
8-30 VDC |
| Led Type |
Ring |
| IP Rating | IP65 |
| Dimensions | 114 x 70 x 17.8 cm (4.5 x 2.8 x 0.7 in.) |
| Operating Temperature | -10˚C to 50˚C (14˚F to 122˚F) |
| Manufacturer's Warranty: | 2-year limited product warranty |
