Product Details
＋

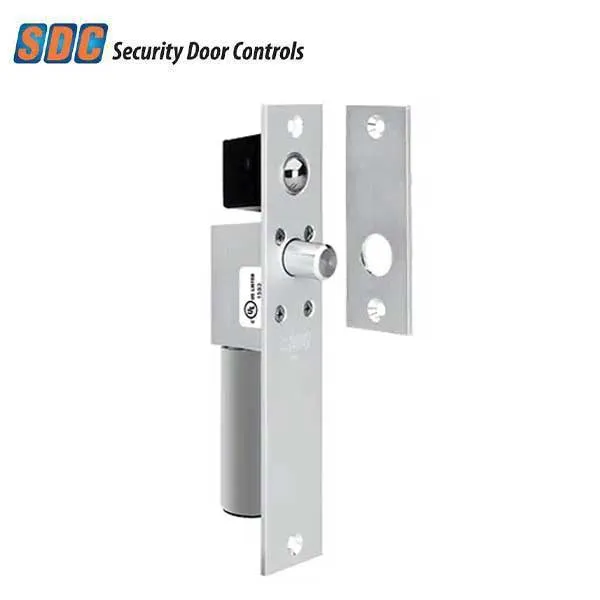

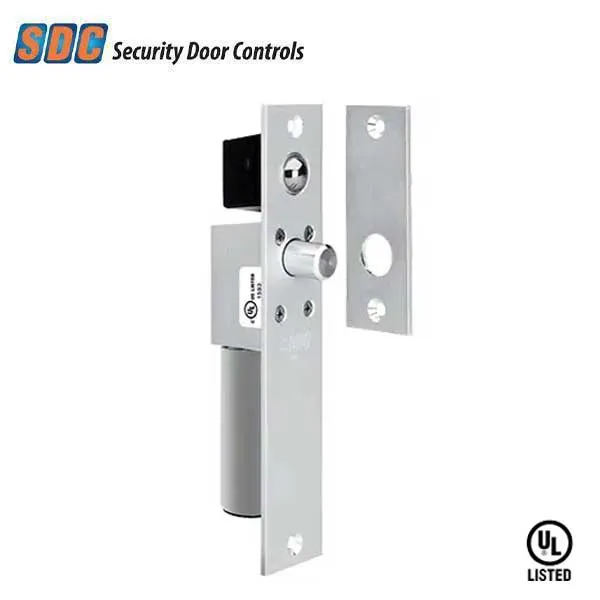

The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical.
Features:
- Adjustable Auto Relock Switch
- Fits 1 ¾” minimum face frames
- SDC Spacesaver® locks may be mounted in the frame header, side jamb or door lock stile.
- Failsafe – 12/24VDC standard
- Two aluminum mounting tabs are provided for easy lock installation.
- Anodized Aluminum Finish Standard
- UL Listed, US & Canada, UL 10C Positive Pressure Compliant
- Optimal door status and Bolt status sensors
Specifications:
| Construction: | Solid Stainless Steel |
| Lock Function: | Electric Bolt Lock - Failsafe - Electrically Locked |
| Faceplate: | 8”L x 1-1/2”W x 1/8”D |
| Strike: | 4”L x 1-1/2”W x 1/8”D |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 5/8” |
| Bolt Throw: | 3/4” |
| Door Thickness: | 1-¾" minimum face frames |
| Mounting Tabs: | 2 Aluminum Tabs |
| Voltage: | 12/24VDC Voltage Continuous duty |
| Current: | 900/450 mA @ 12/24 VDC |
| Lock Dimensions: | 8"L x 1-1/2"W x 1-5/8"D |
| Certifications: | UL 10C Positive Pressure Compliant |
| Warranty: | 5-Year Manufacturer Warranty |
