Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Flat |
| Alternate Mfr Part Number | 1069565 |
| Coding | Universal |
| Dimensions | 40 mm x 18 mm x 26 mm |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Output | OSSD |
| Series | |
| Standards | EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3 |
| Supply Voltage | 24 VDC |
Overview

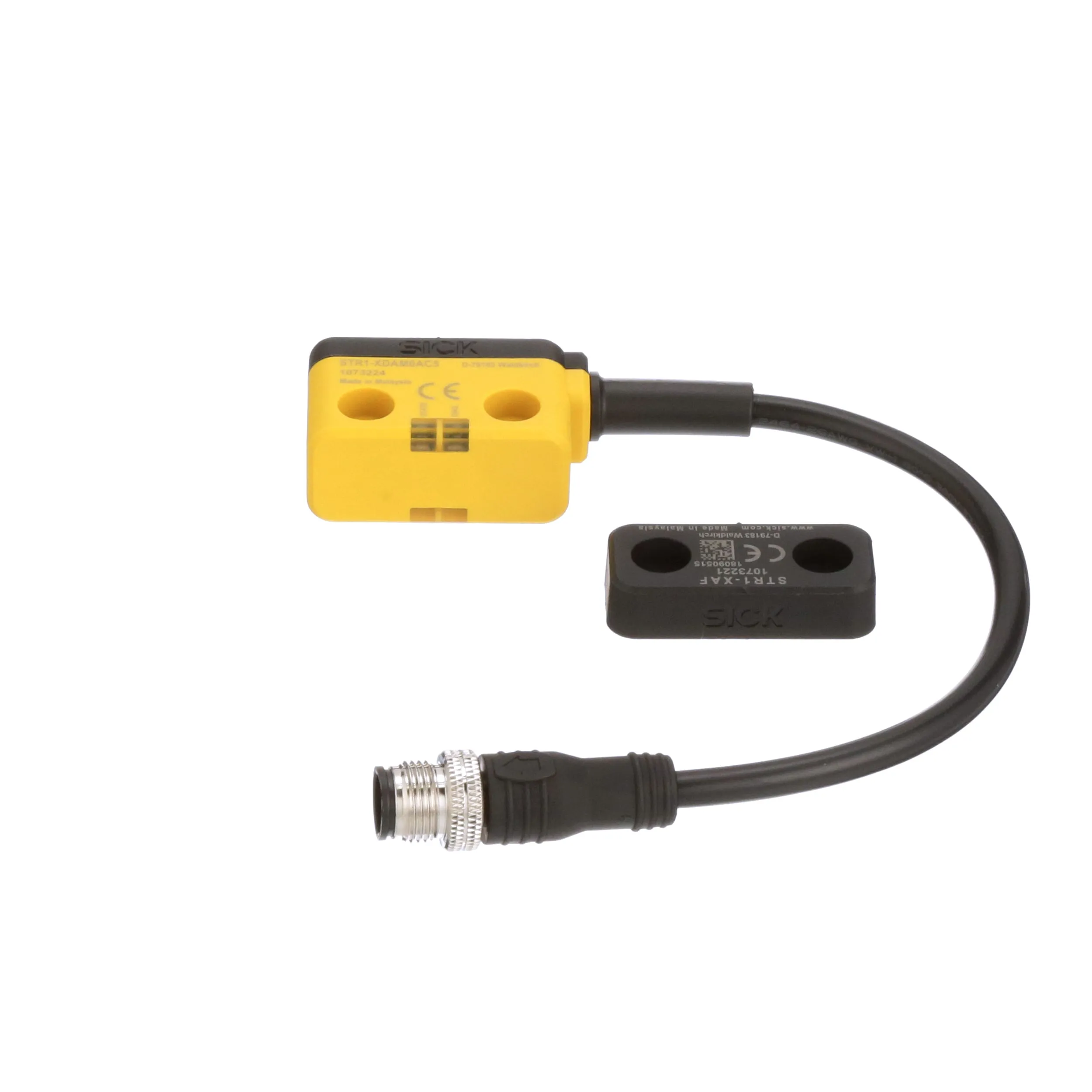

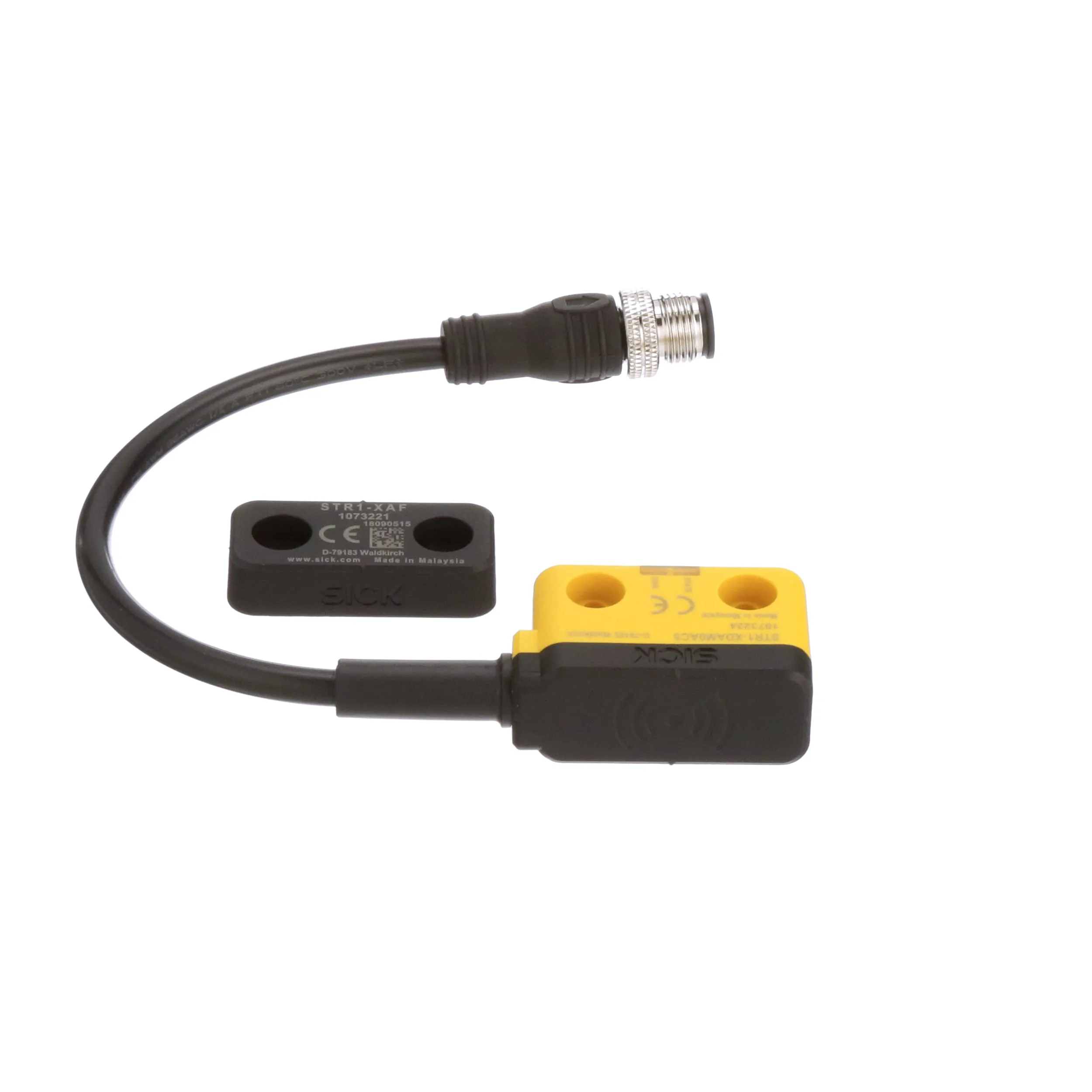

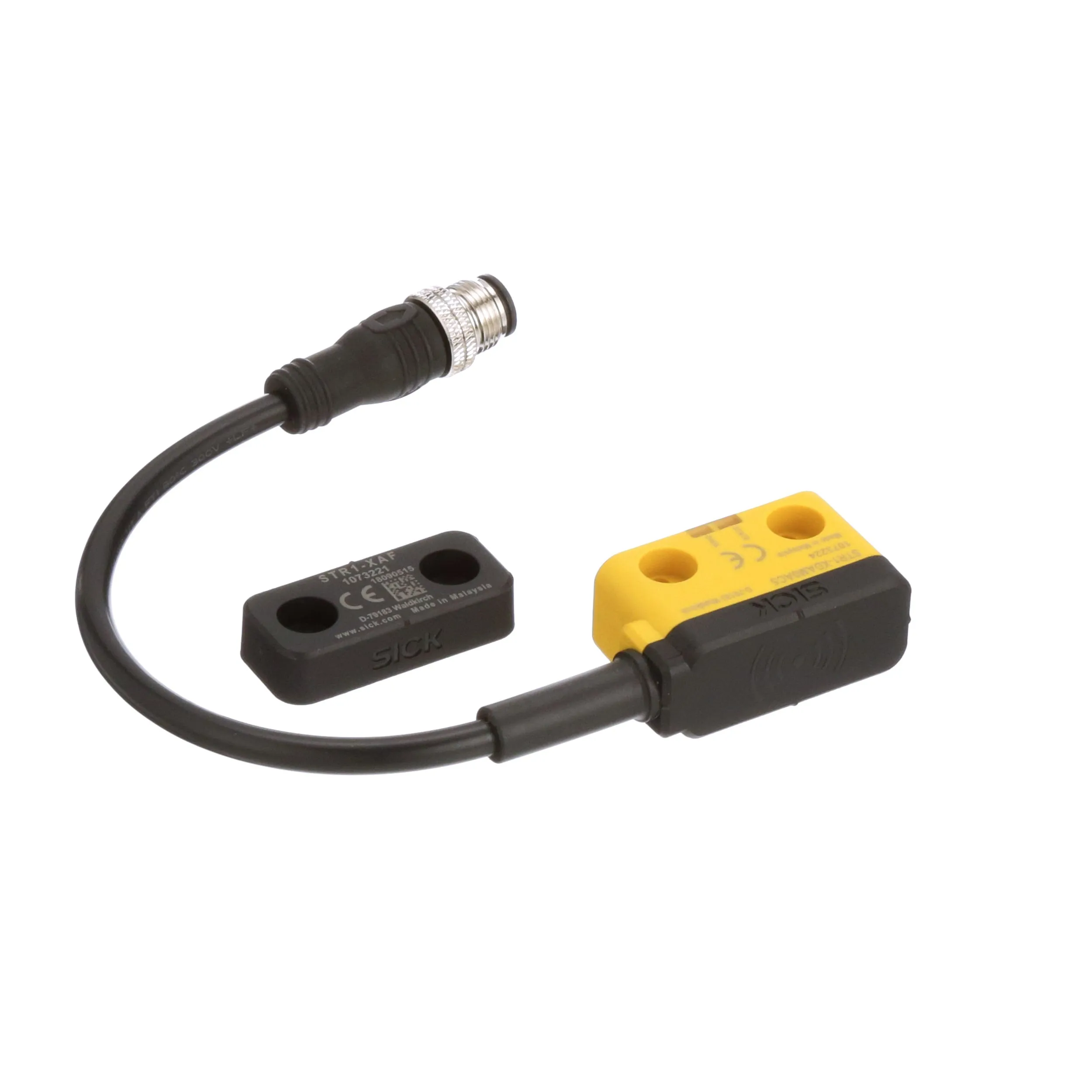

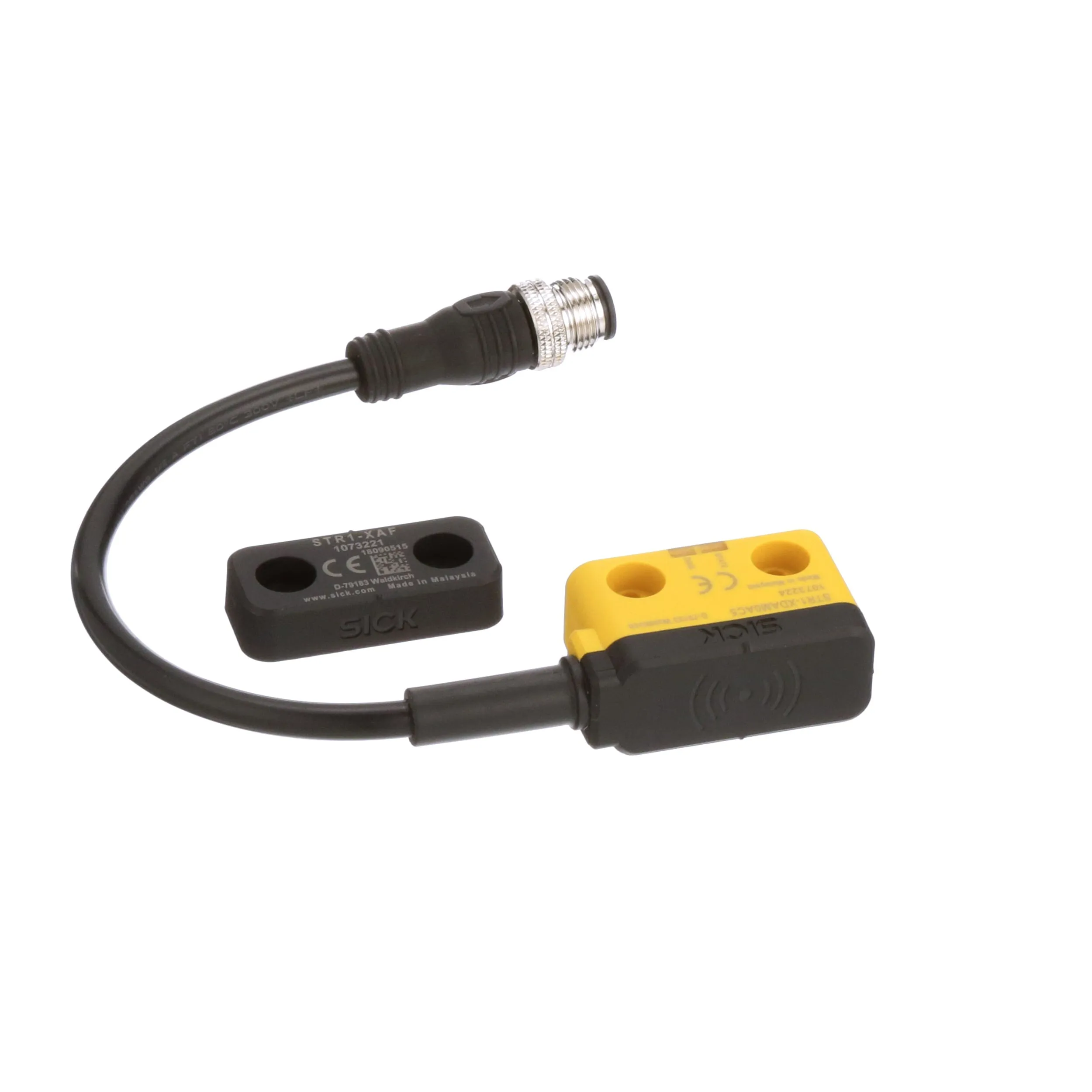

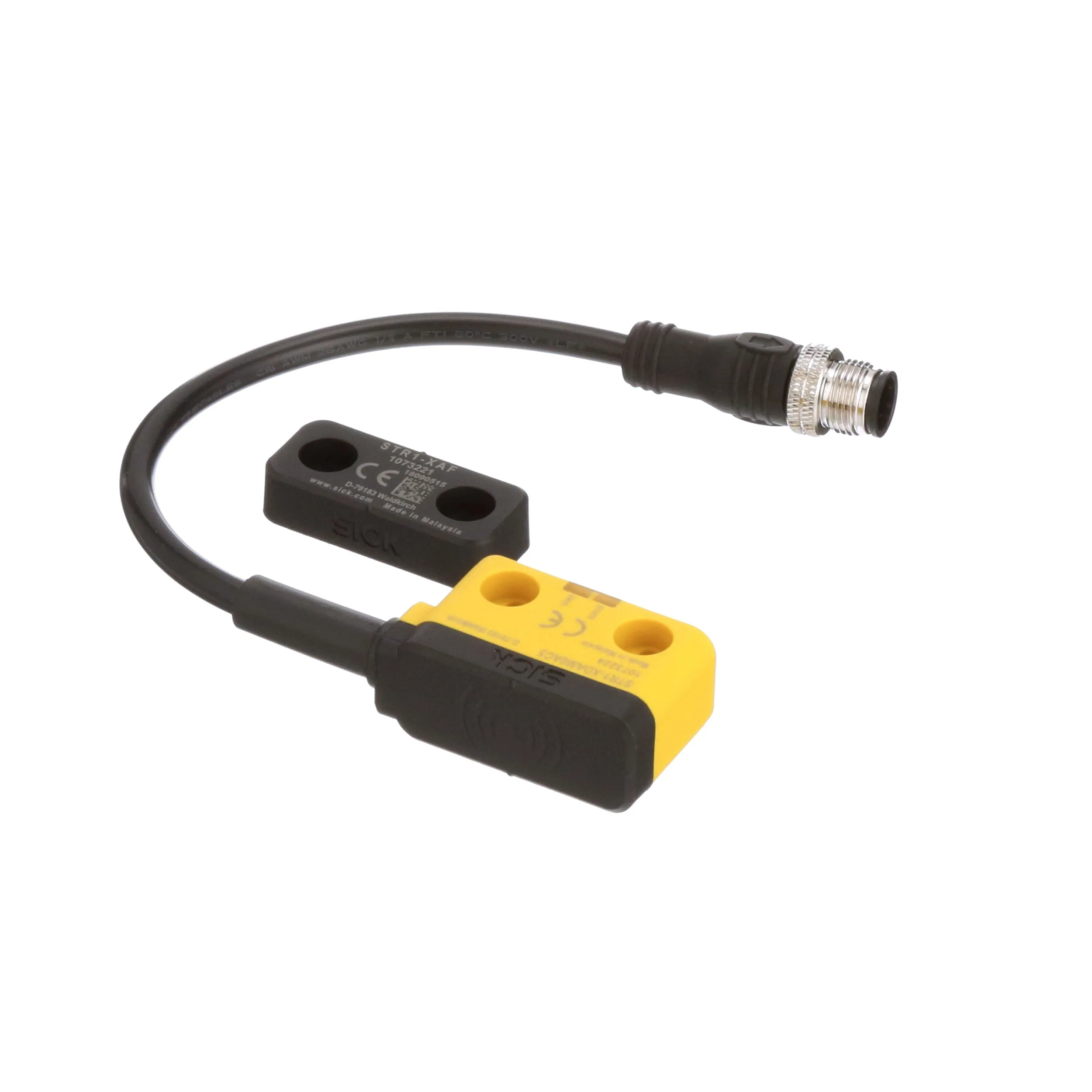

SICK STR1 Non-contact Safety Switch:
The STR1 transponder safety switch has monitored semiconductor outputs (OSSDs) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. The STR1 is available with three codes. Universally coded sensors accept all actuators. An actuator must be taught into both the uniquely coded and permanently coded variants; this is the only actuator that the STR1 then accepts. The sensor has three active sensor surfaces. The actuator comes in three different sizes. This allows the STR1 to offer maximum mounting flexibility.
Features:
