Name: Time Mark Corporation 261-DXT-120
SKU: 710241

Product Details ＋

Product Attribute	Attribute Value
Current Rating	10 A
Function	Alternating
Mounting Type	Socket
Number of Pins	8 Pin

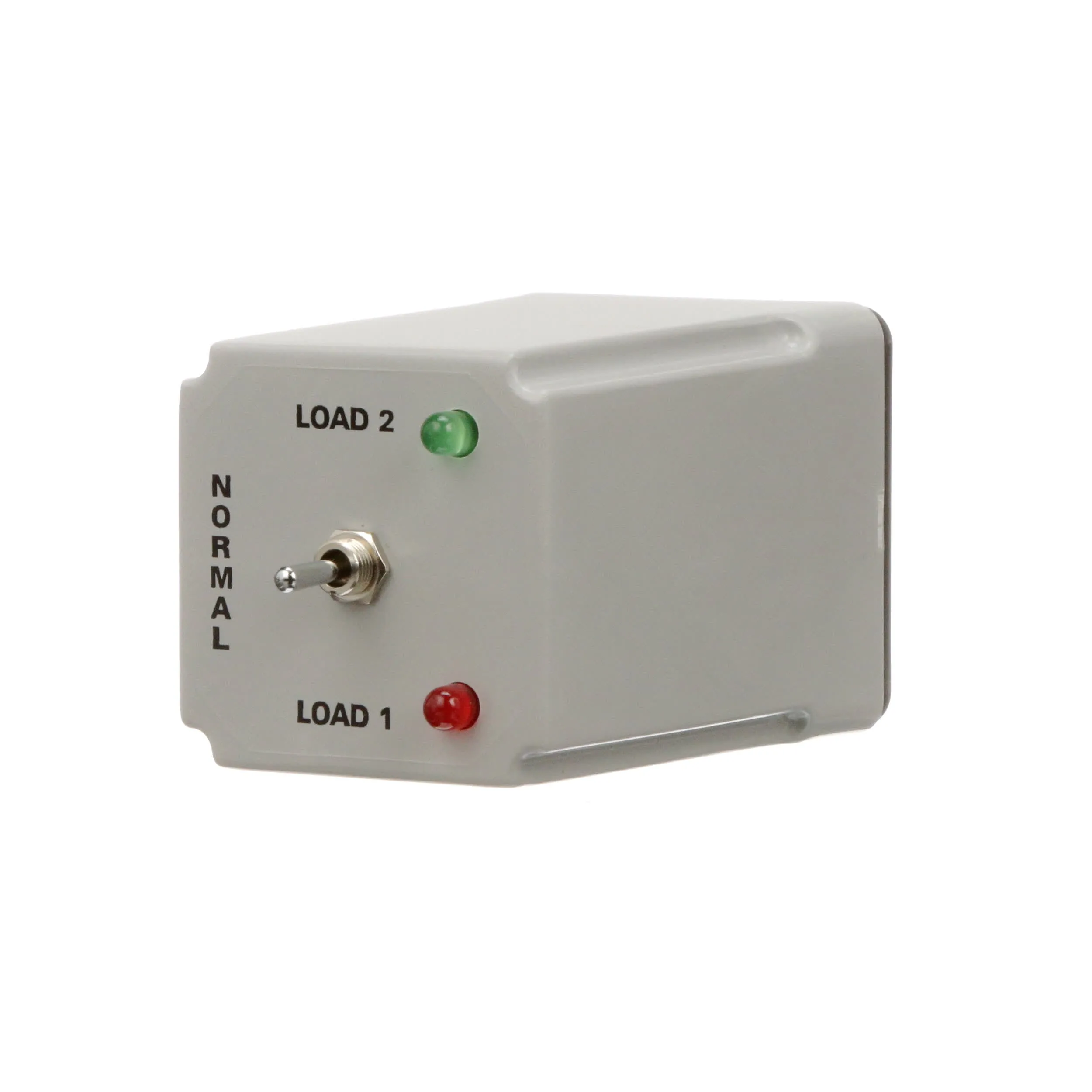

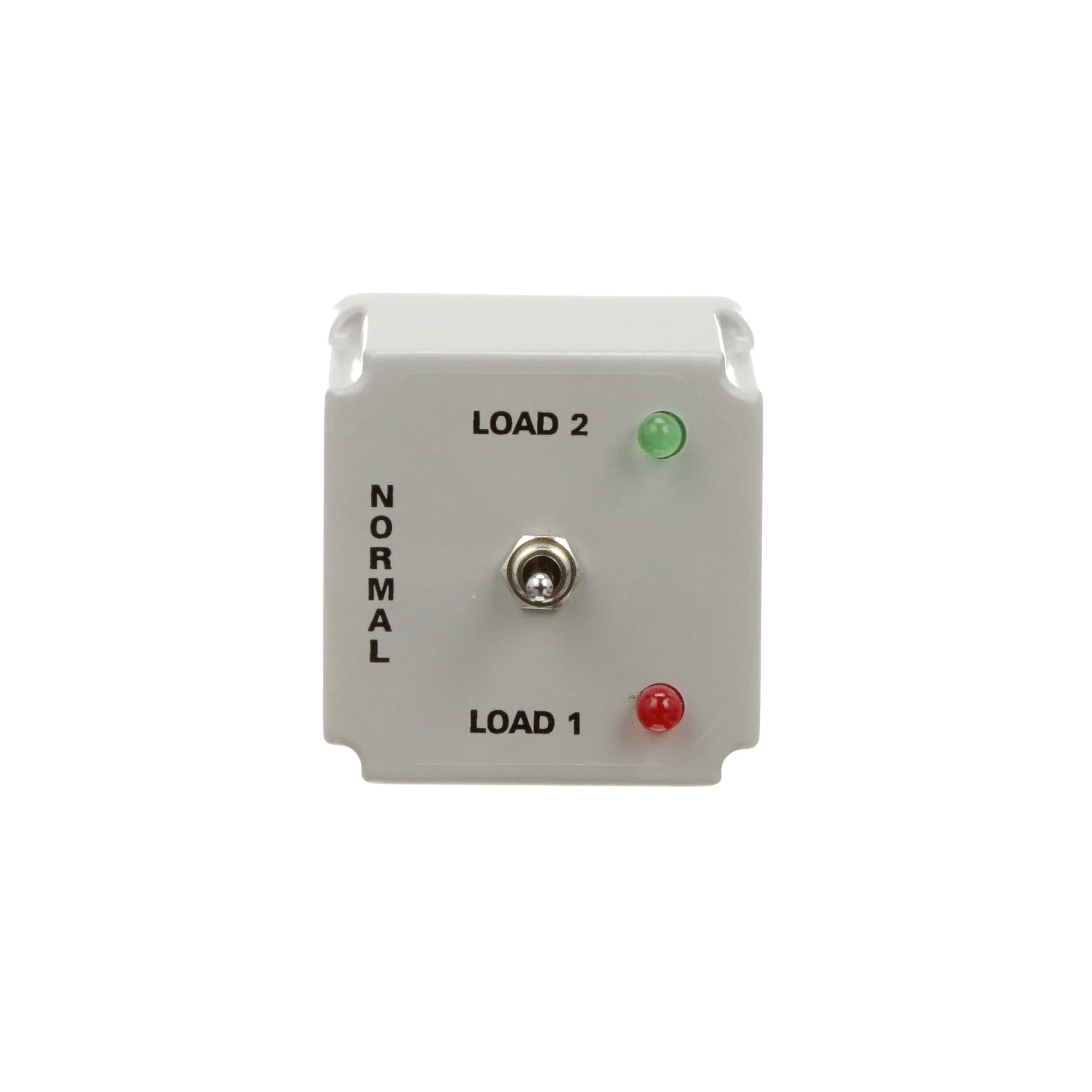

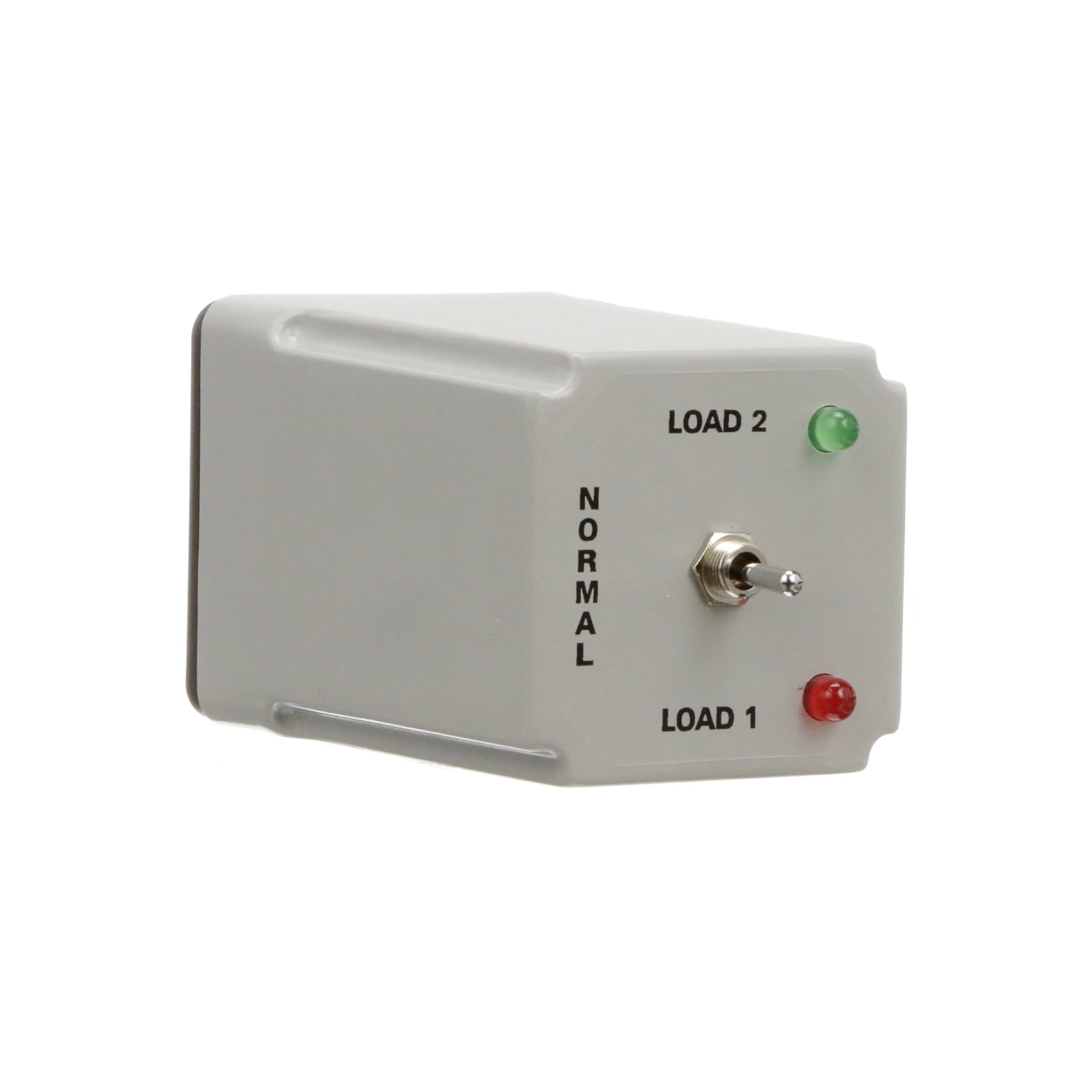

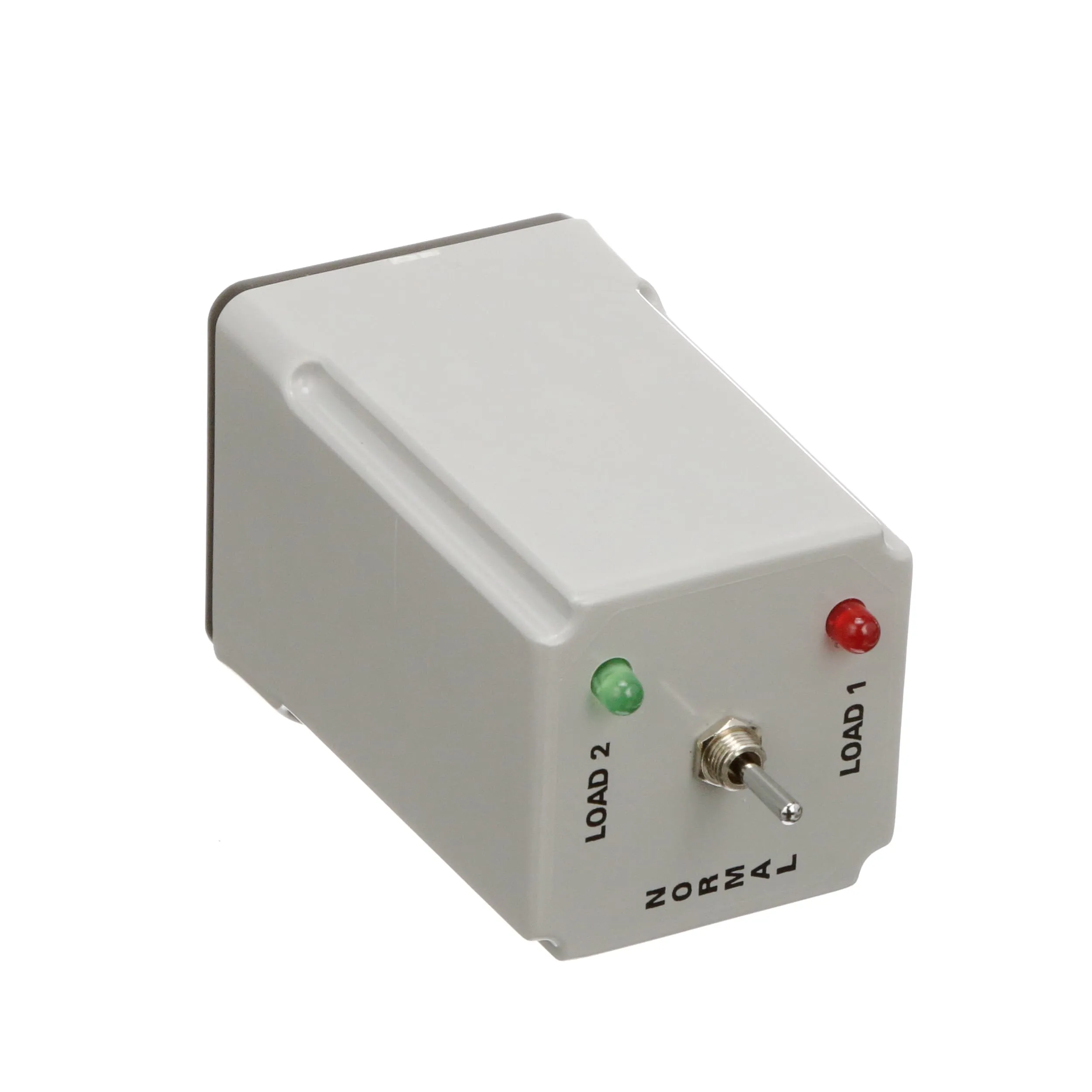

Product Description	The alternating relay is designed for duplex pumping systems where it is desirable to equalize pump run time. The solid state alternating circuit drives an internal electromechanical relay. A continuous power source and control switch are required. The control switch (float, pressure or other isolated contact) is connected between the L1 terminal and the control terminal. Each time the control switch is opened the output contacts will change states. Indicator lights on the case show the internal relay status. On the optional toggle switch versions, the toggle switch is set to the NORMAL position. Setting the switch to Load 1 or Load 2 will lock the relay in position, preventing alternation.
Product Header	261 Series Alternating Relays
Relay Type	Solid State Relay
Series
Standards	UL ; CSA

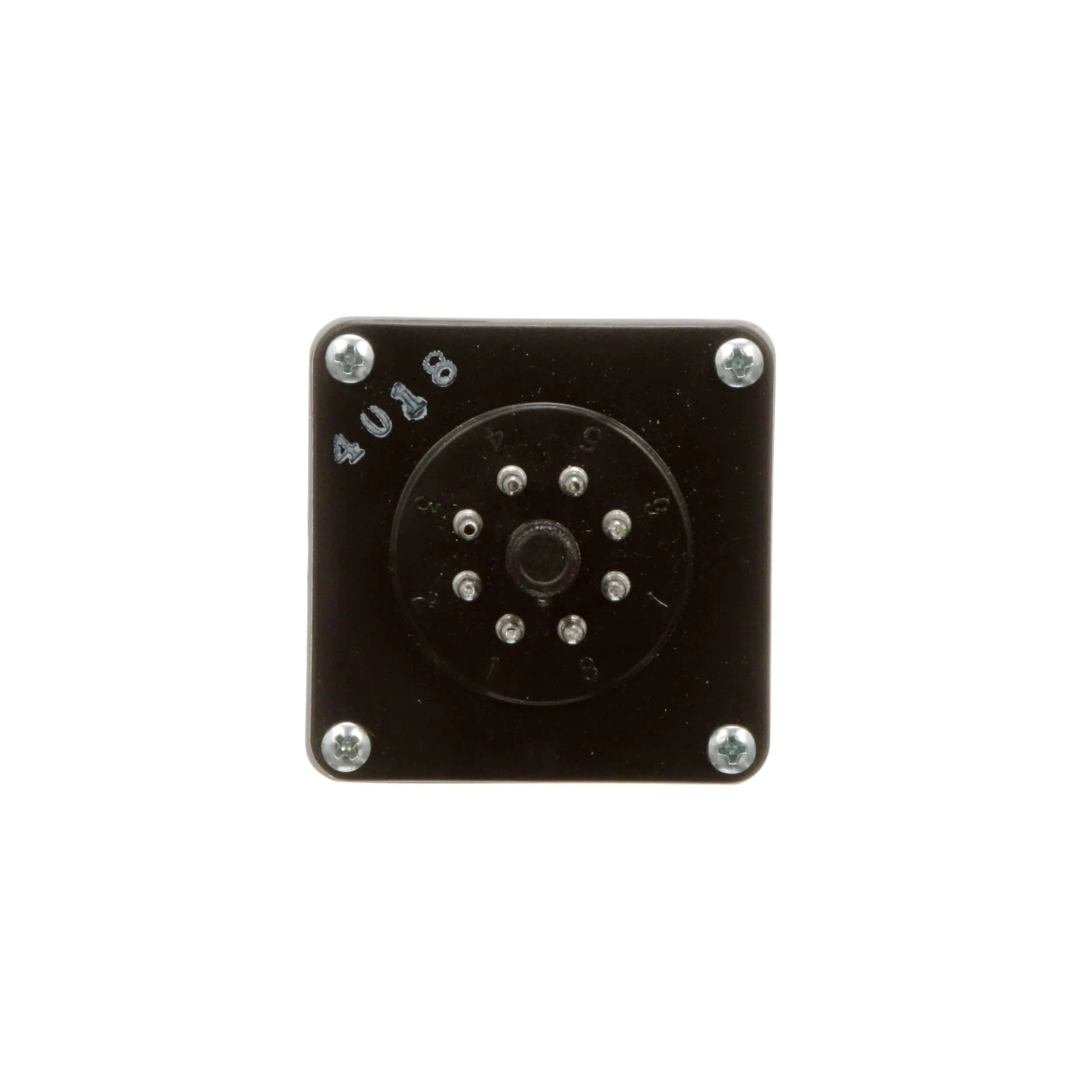

Termination	8-Pin Octal
UPC Code	662917003408
Voltage Rating	120 VAC
Voltage, Control	120 VAC ; 120 VDC ; 110/115/120/125 VAC
