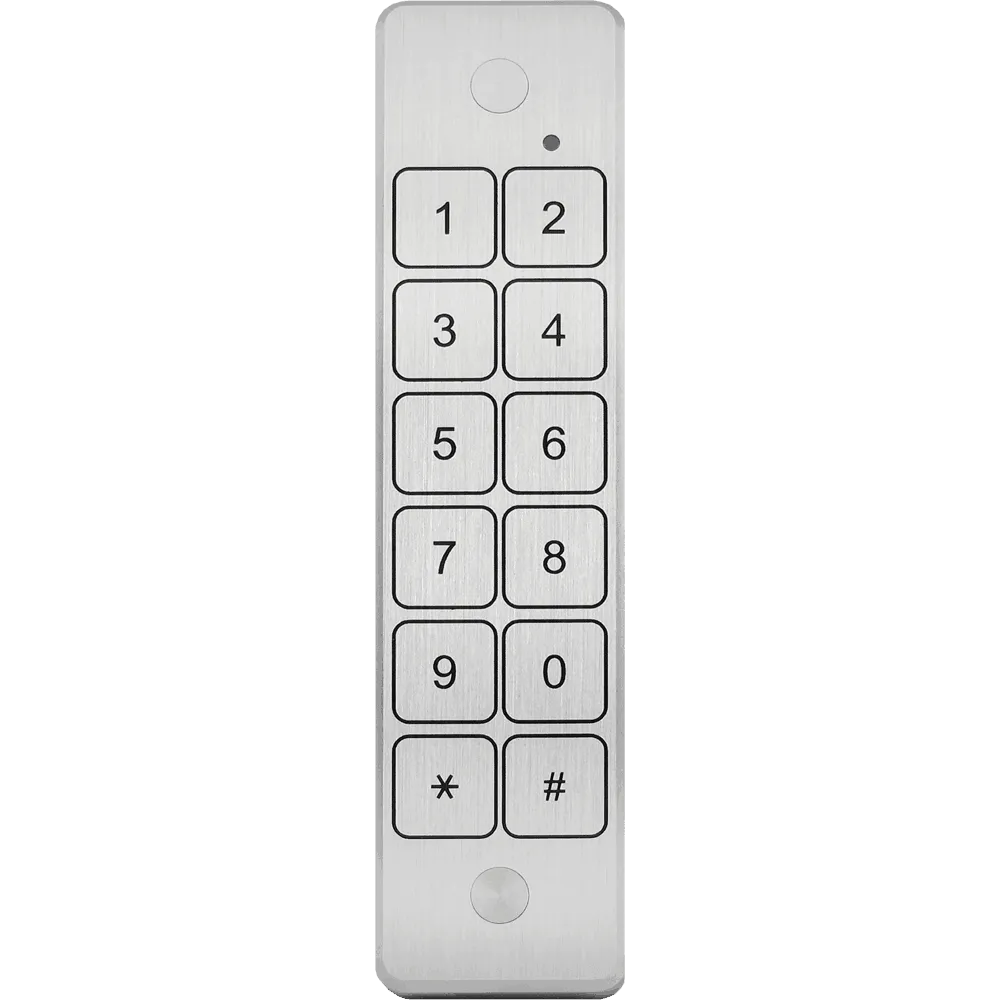

The PRX-4 Keypad with Wiegand output allows keyless entry for select Viking apartment or office entry systems. The PRX-4 Keypad features standard 26-bit Wiegand interfacing, a metal enclosure with potted electronics and a pigtail connection for indoor or outdoor applications.

Keypad Features:

• The Keypad interfaces with the AES-2000 Accessible Entry System. Up to 32 entry points with PRX-4 Keypads may be added to the AES-2000 by adding ES-3 Controllers
• Alternatively, the PRX-4 can be used with the ES-1 Stand Alone Door Entry Controller, and the C-4000 Four Door Entry Controller
• The PRX-4 is equipped with Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation
• The PRX-4 features a foam rubber gasket, sealed connections, as well as an epoxy potted circuit board
• Standard 26-bit Wiegand interface
• Designed for outdoor use, the PRX-4 comes standard with Enhanced Weather Protection (EWP)
• PRX-4 is designed to meet IP66 Ingress Protection Rating
• Pigtail connection for easy installation
• Bi-color LED shows activity
• Screw protection caps
• Beep tones acknowledge key strokes
• Programmable Facility Code stored in non-volatile memory (no batteries required)
• Power: 12-28V DC, 30mA - average
• Dimensions: 181mm x 43mm x 20mm (7.1” x 1.7” x 0.5”)
• Environmental: -40° C to 70° C (-40° F to 158° F) with up to 100% humidity
• Connections: 8” long pigtail leads, 22 gauge
• Compatible with these Viking products:
• Accessible Entry System
• Accessible Video Entry System
• Apartment / Office Entry Controller
• Stand Alone Keyless Entry System
• Entry System Door Controller
